Who makes the RCA 274417 DLP lamps?

RCA doesn't make lamps for their DLP TVs! Philips is the original lamp manufacturer for your RCA 274417 Lamp. In rare instances, Osram may also be the original, but they still use a Philips lamp driver, or ballast, so it's best to replace with a Philips brand UHP lamp!

RCA 274417 replacement lamp Watch my demonstration!

How does the RCA 274417 DLP Lamp work?

  • RCA 274417 lamps are pre-charged with about 15,000 volts
  • There is no actual filament inside because it's a gas lamp
    (Hg - mercury vapor)
  • RCA DLP lamps will fail continuity test

How long do RCA DLP lamps usually last?

  • First Generation RCA lamps lasted from 2,000 to 3,000 hours or more.
  • Second Generation RCA lamps will last up to 8,000 hours.
  • Second Generation RCA lamps have better consistency.
  • All depending on your usage and the type of lamp you have.

What are the benefits of replacing the entire lamp unit (the lamp and the enclosure)?

  • Super quick installation.
  • Just pop the old one out, and the new one in.
  • Newer enclosures don't warp and are safer to re-use later.
  • The cost is now almost negligible. You'll spend only $20 more for a lamp inside the enclosure from Discount-Merchant.com.

How easy is it to replace just the lamp?

It can take anywhere from 5-15 minutes depending on your personal dexterity with a screw driver, but replacing a lamp yourself is very straight forward. I can do it in 5 minutes!

Whether you have a Samsung, RCA, or Mitsubishi, swapping out the lamp is very easy. The ballast wires don't even have to go in any particular order because most DLP's use AC (alternating current, for those tech-savvy people).

Where do I purchase the lamps?

RCA 274417, sometimes written as 274417 can be purchased from many places such as Discount-Merchant.com, which sells bulb-only and lamps with enclosures for various TV models. I highly recommend them because they are one of the largest parts distributors in the United States with a very loyal customer base. Any company can sell you lamps, but Discount-Merchant.com also provides free technical support and same day shipping--just read their reviews online!

NOTE: You're not always going to be able to see the part numbers and you shouldn't worry about them. The complete cage part number is what matters and this is usually on the lamp housing and on the right side of your TV. It looks like:

RCA 274417 lamp enclosure sticker

Symptoms of a bad lamp:

  • If you hear audio, but have no picture
  • If you hear a ballast click, but the lamp doesn't ignite
  • If you can't see the lamp light up in the back of the TV
  • If you have blinking lamp indicator lights
  • Visual indication that the lamp is blown
  • Dim picture after years of use

Symptoms of another part malfunctioning:

  • Consistent or inconsistent clicking from the ballast
  • Screeching or winding sounds from the color wheel
  • No picture, no audio (possible power supply or ballast)
  • Blurry picture, or truncated picture (DMD or light tunnel)
  • No blinking lights, or different blinking lights
  • Spots or blobs on the screen (prevalent in LCD projection)

How do I take my enclosure out of my TV?

RCA 274417 lamp door
Unplug your TV set first and locate the lamp door.
RCA 274417 removing screws
1. Remove the screws securing the enclosure door.

RCA 274417 removing the door
2. Once removing the screws, remove the lamp door.
RCA 274417 locating the lamp
3. Inside your TV set you're going to see a plastic/metal case.

RCA 274417 taking it out
4. Gently pull the enclosure out.
RCA 274417 getting new lamp
5. Prepare your new enclosure to be installed.

RCA 274417 putting it back
6. Slide in the new enclosure.
RCA 274417 securing the lamp
7. Make sure you put the lamp correctly, you should feel a click at the end.

RCA 274417 closing door
8. Put the enclosure door back in its place.
RCA 274417 lamp panel
9. Put the screws that secure the door and that´s it. We're finished.

RCA 274417 lamp Click here to watch the video guide!

What do I need to replace my lamp?

What you'll need:

  1. Phillips screwdriver
  2. New DLP Lamp (You can buy it from Discount-Merchant.com)
  3. Gloves are recommended

Note: You should handle the bulb with gloves or a lint-free cloth. Oils from your fingers can damage the bulb!

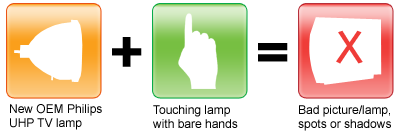

This is what happens when you touch the lamp with bare hands

1. Oils from your fingers get on the glass of the lamp.

2. When the lamp is on, the oils help heat up that particular spot on the lamp, called a hot spot.

3. That hot spot can shatter the glass on the lamp.

NOTE: The lamp can still be usable, but there will be a noticeable shadow in the picture.

RCA 274417 - what not to do


RCA 274417 Replacement Guide

RCA 274417 lamp
RCA 274417 lamp casing
RCA 274417 casing
1. Let´s start by turning up side down the lamp, you´ll notice that the cage is secured by some screws on the top.

RCA 274417 lamp screws
2. To extract them you´ll need a phillips screwdriver.
RCA 274417 holder
3. In the inside of the enclosure there are some screws securing the holder around the lamp, remove them.

RCA 274417 lamp side terminal
4. Uninstall the screw securing one of the cables to the side terminal of the lamp.
RCA 274417 lamp top terminal
5. Now with a pair of pliers take out the nut securing the second connector from the top terminal.

RCA 274417 lamp holder
6. Remove the holder around the lamp.
RCA 274417 lamp replacement
7. Take out the lamp from the enclosure.

RCA 274417 lamps old and new
8. Ready your new lamp to install it.
RCA 274417 lamp enclosure
A. Place the new lamp inside the enclosure.

RCA 274417 lamp placing holder
B. Next, reinstall the holder in its place.
RCA 274417 lamp screwing holder
C. Secure it with the screws around it.

RCA 274417 lamp cables
D. Insert the screw that conjoins the side terminal of the lamp with one of the cables.
RCA 274417 lamp screwing cables
E. Install the nut on the top terminal to connect the cable with the top terminal.

RCA 274417 lamp cover
F. Now return the metal top to its original place and install the screws back on.
RCA 274417 replacement lamp enclosure
G. And you´re all finished replacing your lamp.

RCA 274417 lamp Click here to watch the video guide!

TV won’t turn on

• Press the TV button or ON/OFF button while remote is in TV mode and there’s a source of power to the outlet or outlet strip.

• Make sure the TV is plugged in.

• Check the wall receptacle (or extension cord) to make sure it is “live” by plugging in something else.

• Something might be wrong with your remote control. Press the POWER button on the front of the TV. If the TV turns on, check the remote control solutions on page 60.

• When you first plug your TV into an outlet, the Power indicator on the front panel will light for approximately 15 seconds and then go off during the initialization of the TV. The TV can only be turned on after the Power indicator goes off. This happens every time power is reapplied to the TV.

• Remote Setup might be set to the wrong option. Press MENU/OK on the front panel. Select Connections, then Special Features, then Remote Setup. Choose TV (default).


Front Panel LED Indicators

Comment on this article!

Any questions or comments are appreciated; I'll try to answer them as soon as I can! Simply drop me an email at adelauney84@hotmail.com. So, leave some comments!

  • How long has your lamp lasted? I've heard some lasting 15,000 hours!
  • Was it easy to install?
  • Who have you purchased from?
  • What's your experience buying online?

You can also sign up for our forums at FixYourDLP.com/forums for expert advice!
